MCerberus® 400 Series HVAC Monitoring Hardware

The MCerberus® Hardware system measures the Inlet Temperature, Outlet Temperature, and Fan Current Draw (amps) every minute and stores the data to our Cloud Based MySQL Database. This data transfer and storage is completed via your WiFi Network which then allows for subsequent analysis of operating performance from a remote location such as your office.

We provide a Back End Office program which is used to analyze and summarize the current performance of the monitored HVAC.

HARDWARE KIT

The MCerberus® 400 Series Hardware Kit consists of the following items:

  • Inlet Temperature sensor
  • Outlet Temperature sensor
  • Optional Room Temperature sensor
  • Current Probe
  • Water Detection Sensor – choice between tray and/or drainline
  • Optional delta P air filter monitoring kit
  • Main Harness connects to HVAC 24VAC power and reads thermostat cool and heat command signals. System includes embedded isolation relays that properly handle thermostat relay leakage currents.

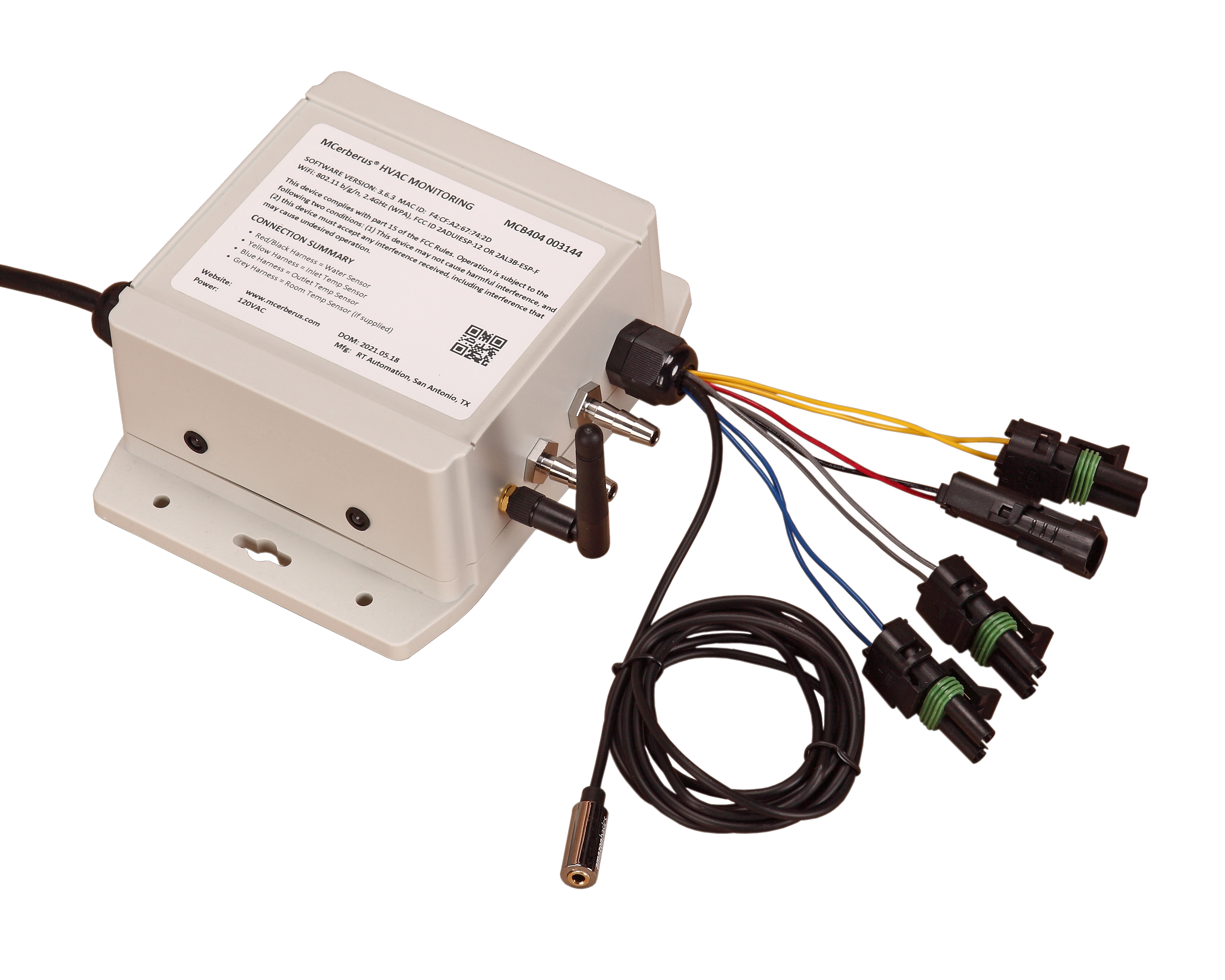

  • The MCerberus® DAQ unit (MCB-400) which includes WiFi capability with an optional High Gain WiFi antenna. NOTE: Access to a local WiFi Network must be provided including access to the Internet. System provides an external WiFi antenna connection allowing multiple antenna options to optimize this connection.

We invite you to CONTACT US to obtain more information with regard to this product. We also have a DEMO PROGRAM that may be downloaded and installed on your computer which allows you to analyze and view the results from our installed field units that are being monitored.
